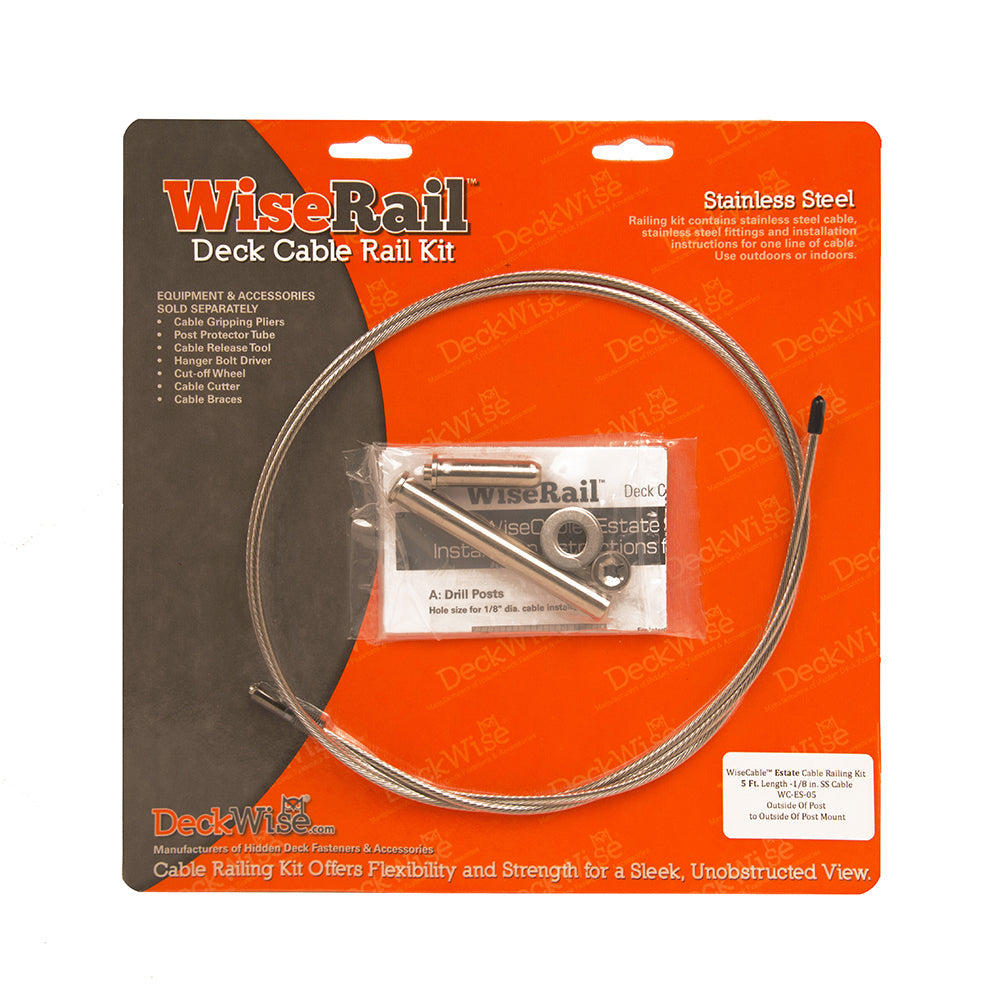

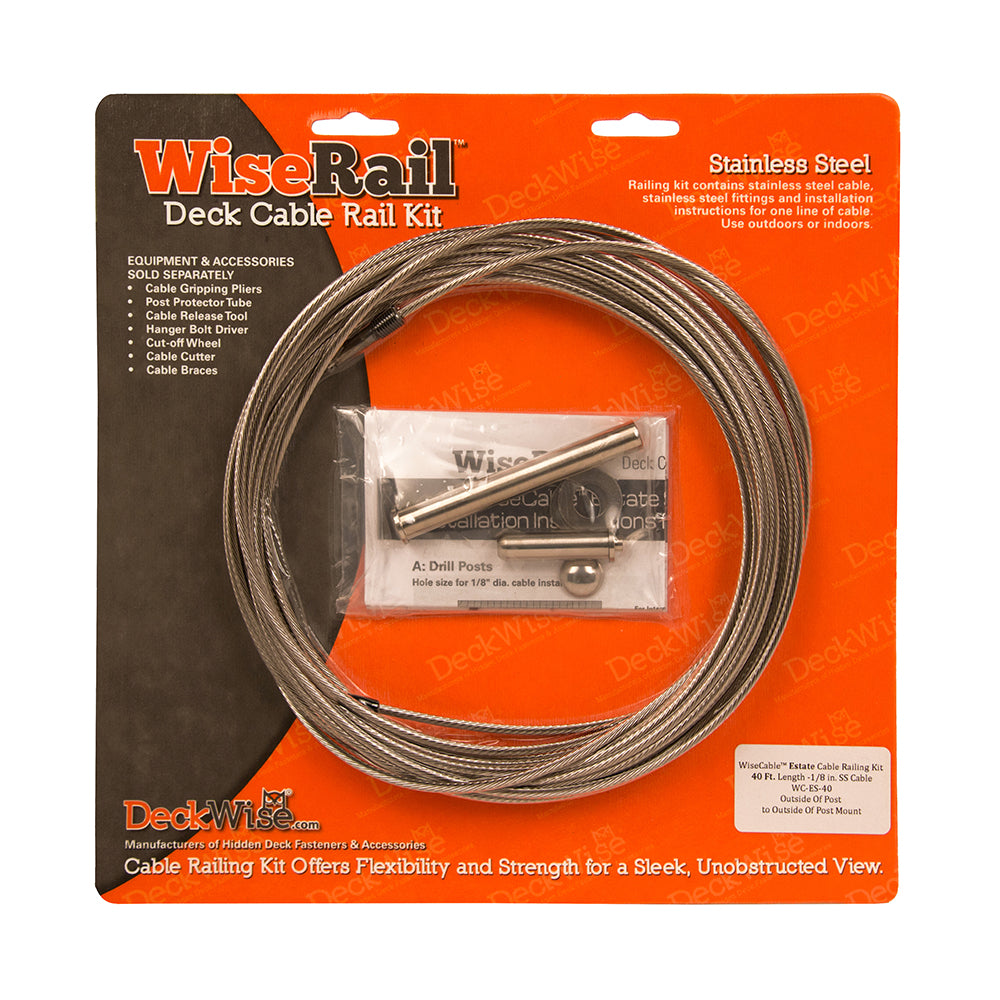

WiseCable™ Estate Series Cable Railing

Use the WiseCable® Estate WC-ES Series for any type of wood post as an outside to outside fitting on a straight level run or on a pitch or stairs. The tensioning device is a 3½” long invisible receiver, which installs through the wood post on one end. The invisible receiver with invisible stud combination is a concealed, swaged, tensioning, through-the-post-mounted fitting that is suitable for level or pitched runs, and is available for wood applications. A pull lock fitting is installed through the other end.

Use the WiseCable® Estate WC-ES Series for decks with dedicated end posts for each run where the posts are situated such that, the back sides of the posts are all accessible. Meaning you can use a through-the-post configuration. This fitting is placed and concealed within a pre-drilled hole in the wood end post (a minimum of 3” of clearance must exist on the back side of the post to allow installation of the receiver). The stud is swaged onto one end of the cable and is inserted and threaded into the receiver installed in the end post. Tension is created by rotating the receiver (with a hex wrench inserted into its broached end) and drawing the stud into the receiver.

Tools needed for WiseCable^® Estate WC-ES Series on level straight runs:

• 5/32 drill bit if 1/8” cable, 7/32 if 3/16”
• 29/64 drill bit for receiver and pull lock installation
• 3/16 wrench for tensioning receiver
• Cable cutting tool
• If using post protector tubes, 1/4 drill bit
